StingBox is Headless, but not Mindless
![](https://www.stingbox.com/wp-content/uploads/2023/09/logo-footer.png)

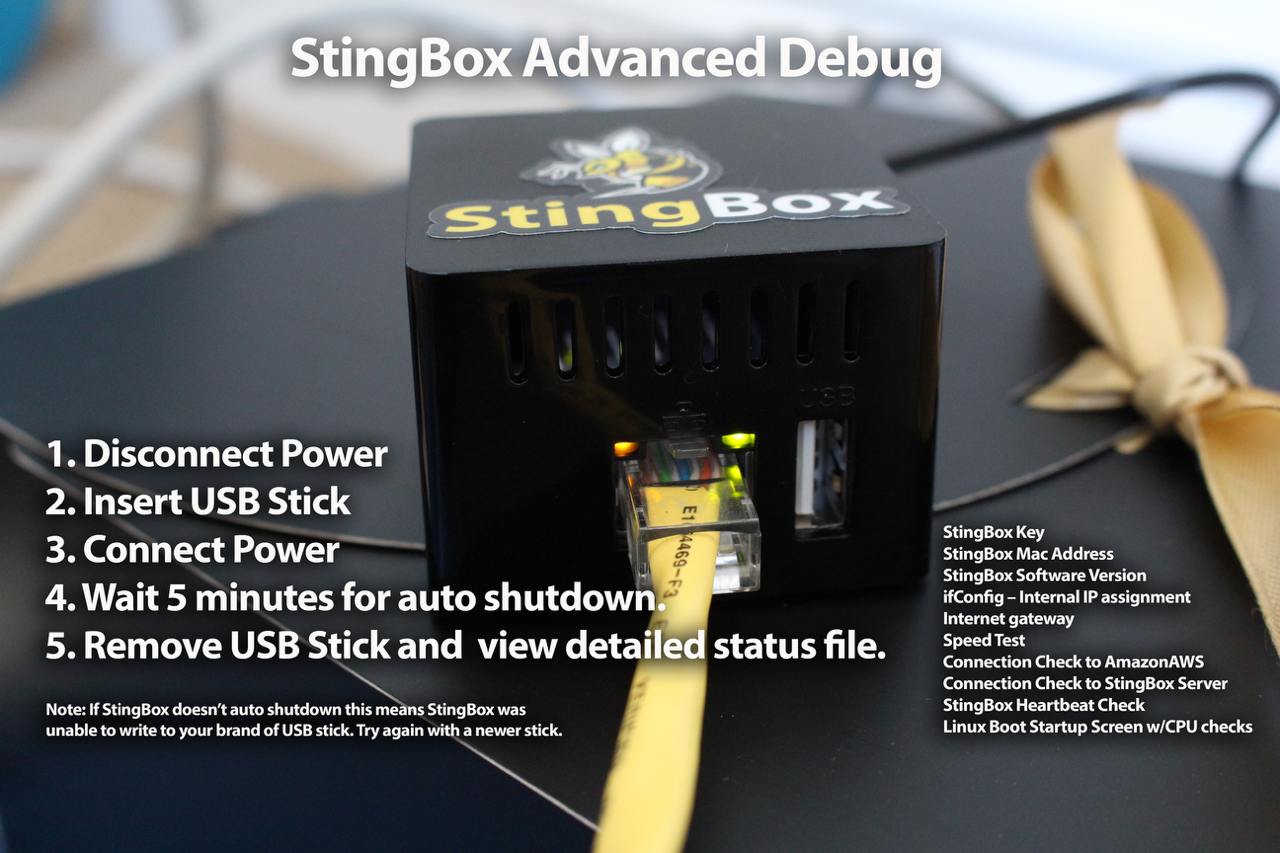

For Assistance, send us your StingBox Debug File by pasting it below.
Otherwise you can find almost all the information you need within the file.
If you are looking for the MAC address of your StingBox, this can be found in the debug file as well as on your StingBox Dashboard. We capture and save the MAC address during our initial provisioning. You can also assign a Static IP to your StingBox by following the instructions here.
Depending on your network configuration, you may also need the IP address your router has assigned and may also need to open access from for StingBox to communicate to the server URLs noted in your debug file.

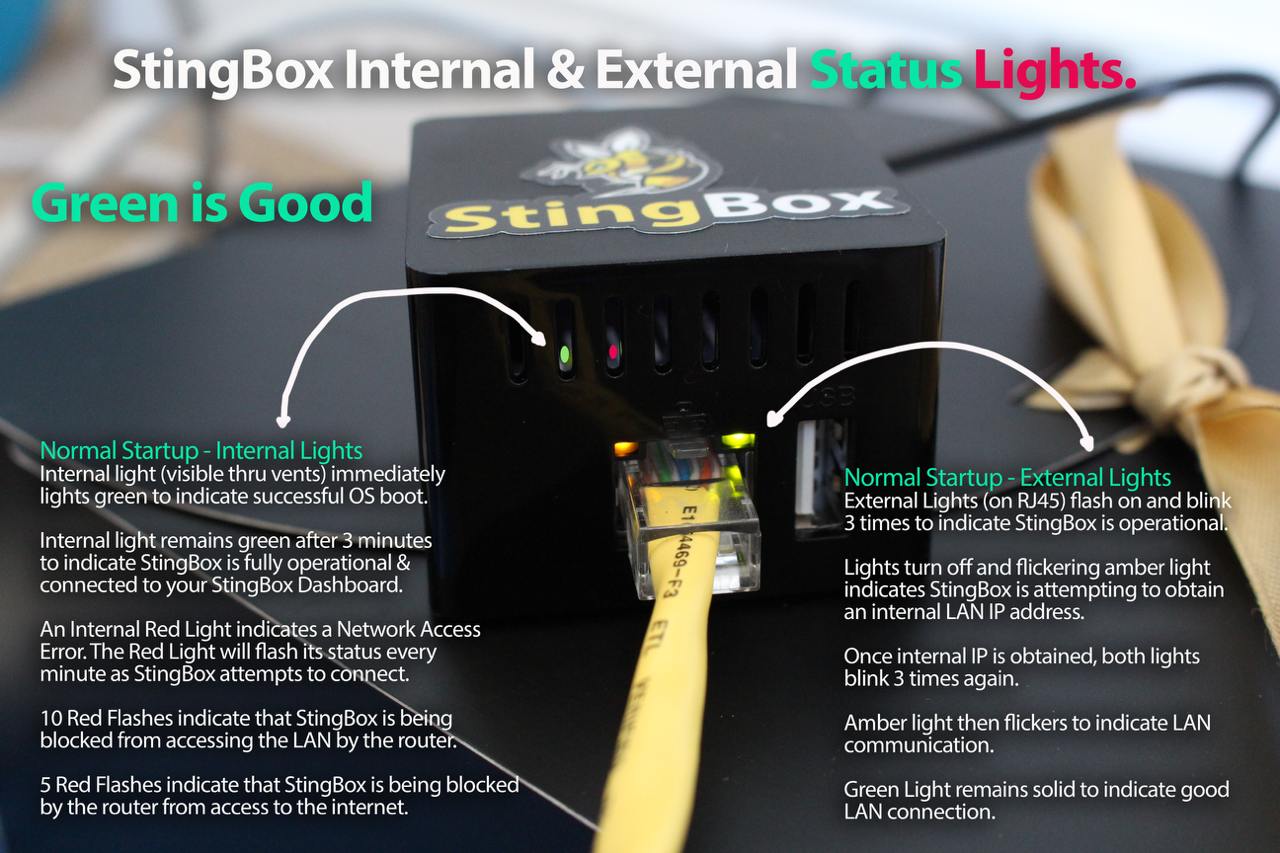

You can also use the lights on StingBox to quickly diagnose status.
Need Help? Send us your debug file
Paste your debug file as a message below and we'll take a look
How to Read StingBox Debug File
The file saved to your USB Memory Stick will be named: StingBoxDebug.txt
It should look like the file below.
/dev/sda1 * 32 3891199 3891168 1.9G 6 FAT16
To understand more about this debug file visit stingbox.com/debug
Mon Dec 5 19:02:05 UTC 2022
stingbox key
[This line will contain your StingBox Key]
stingbox version
[This line will contain your StingBox OS Version]
ethernet config: ifconfig
eth0 Link encap:Ethernet HWaddr 02:42:2a:xx:xx:xx:xx
inet addr:[This will be your StingBox internal IP] Bcast:192.168.1.xx Mask:255.255.xx.0
inet6 addr: fe80::42:2aff:xx:xx/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:35112 errors:0 dropped:0 overruns:0 frame:0
TX packets:153601 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:6020351 (6.0 MB) TX bytes:7500048 (7.5 MB)
Interrupt:38
ethernet config: ip a show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 02:42:2a:xx:xx:xx brd ff:ff:ff:ff:ff:ff
inet [This will be your StingBox internal IP]/24 brd 192.168.xx.xxx scope global eth0
valid_lft forever preferred_lft forever
inet6 fe82::41:2aff:xxx:xxxx/64 scope link
valid_lft forever preferred_lft forever
default route: route -n
Kernel IP routing table
Destination Gateway Genmask Flags Metric Ref Use Iface
0.0.0.0 192.168.1.1 0.0.0.0 UG 0 0 0 eth0
192.168.1.0 0.0.0.0 255.xx.xx.0 U 0 0 0 eth0
internet connectivity test, external IP
[This will be your Network external IP]
stingbox server connectivity test
Connectivity to StingBox Server stingbox.twocyber.com OK
Performing a heartbeat to stingbox
% Total % Received % Xferd Average Speed Time Time Time Current
[In this section, the percentage transferred and received should be 100% and the totals should match]
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 –:–:– –:–:– –:–:– 0 0 0 0 0 0 0 0 0 –:–:– 0:00:01 –:–:– 0 0 0 0 0 0 0 0 0 –:–:– 0:00:01 –:–:– 0 100 13 100 13 0 0 4 0 0:00:03 0:00:02 0:00:01 4
[This will be your StingBox internal IP]
[This will be your Network external IP]
[This line will contain your StingBox Key]
[This line will contain your StingBox OS Version]
curl -sS -d ‘stingboxkey=[This line will contain your StingBox Key]&method=config’ https://stingbox.twocyber.com/threat/api/comm.php > /boot/stingboxconfig.sh
curl -sS -d ‘stingboxkey=[This line will contain your StingBox Key]&method=heartbeat&localmac=[This line will contain your StingBox Mac Address]&localip=[This will be your StingBox internal IP]&publicip=[This will be your Network external IP]&version=[This line will contain your StingBox OS Version]‘ https://stingbox.twocyber.com/threat/api/comm.php
RUNNING LATEST VERSION
[The rest of the file is the boot log].
results of dmesg
[ 0.000000] Booting Linux on physical CPU 0x0
[ 0.000000] Linux version 5.3.5+ (root@test) (gcc version 7.2.1 20171011 (Linaro GCC 7.2-2017.11)) #2 SMP Fri Nov 15 16:24:33 CST 2019
[ 0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=50c5387d
[ 0.000000] CPU: div instructions available: patching division code
[ 0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[ 0.000000] OF: fdt: Machine model: Xunlong Orange Pi Zero
[ 0.000000] Memory policy: Data cache writealloc
[ 0.000000] cma: Reserved 128 MiB at 0x57c00000
[ 0.000000] On node 0 totalpages: 131072
[ 0.000000] Normal zone: 1152 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 131072 pages, LIFO batch:31
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: Using PSCI v0.1 Function IDs from DT
[ 0.000000] percpu: Embedded 20 pages/cpu s49868 r8192 d23860 u81920
[ 0.000000] pcpu-alloc: s49868 r8192 d23860 u81920 alloc=20*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 129920
[ 0.000000] Kernel command line: root=/dev/mmcblk0p2 rootwait rootfstype=ext4 console=tty1 console=ttyS0,115200 hdmi.audio=EDID:0 disp.screen0_output_mode=1920x1080p60 panic=10 consoleblank=0 loglevel=1 ubootpart=17bb4bcf-01 ubootsource=mmc usb-storage.quirks= sunxi_ve_mem_reserve=0 sunxi_g2d_mem_reserve=0 sunxi_fb_mem_reserve=16 cgroup_enable=memory swapaccount=1
[ 0.000000] Dentry cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 32768 (order: 5, 131072 bytes, linear)
[ 0.000000] allocated 524288 bytes of page_ext
[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off
[ 0.000000] Memory: 365064K/524288K available (9216K kernel code, 1053K rwdata, 2952K rodata, 1024K init, 338K bss, 28152K reserved, 131072K cma-reserved, 0K highmem)
[ 0.000000] random: get_random_u32 called from __kmem_cache_create+0x1f/0x354 with crng_init=0
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[ 0.000000] ftrace: allocating 41889 entries in 82 pages
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 100 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=4
[ 0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] clocksource: timer: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 79635851949 ns
[ 0.000000] arch_timer: cp15 timer(s) running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000011] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.000027] Switching to timer-based delay loop, resolution 41ns
[ 0.000378] Console: colour dummy device 80×30
[ 0.000401] printk: console [tty1] enabled
[ 0.000477] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=24000)
[ 0.000496] pid_max: default: 32768 minimum: 301
[ 0.000950] LSM: Security Framework initializing
[ 0.001089] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.001107] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes, linear)
[ 0.003021] CPU: Testing write buffer coherency: ok
[ 0.003696] CPU0: thread -1, cpu 0, socket 0, mpidr 80000000
[ 0.004668] Setting up static identity map for 0x40100000 – 0x40100054
[ 0.004879] rcu: Hierarchical SRCU implementation.
[ 0.005862] smp: Bringing up secondary CPUs …
[ 0.017133] CPU1: thread -1, cpu 1, socket 0, mpidr 80000001
[ 0.028625] CPU2: thread -1, cpu 2, socket 0, mpidr 80000002
[ 0.039972] CPU3: thread -1, cpu 3, socket 0, mpidr 80000003
[ 0.040157] smp: Brought up 1 node, 4 CPUs
[ 0.040171] SMP: Total of 4 processors activated (192.00 BogoMIPS).
[ 0.040178] CPU: All CPU(s) started in HYP mode.
[ 0.040182] CPU: Virtualization extensions available.
[ 0.042078] devtmpfs: initialized
[ 0.054682] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[ 0.055089] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 1911260446275000 ns
[ 0.055121] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[ 0.064571] xor: measuring software checksum speed
[ 0.074379] arm4regs : 600.000 MB/sec
[ 0.084477] 8regs : 356.000 MB/sec
[ 0.094587] 32regs : 364.000 MB/sec
[ 0.104700] neon : 604.000 MB/sec
[ 0.104709] xor: using function: neon (604.000 MB/sec)
[ 0.104831] pinctrl core: initialized pinctrl subsystem
[ 0.106645] NET: Registered protocol family 16
[ 0.110073] DMA: preallocated 256 KiB pool for atomic coherent allocations
[ 0.111096] audit: initializing netlink subsys (disabled)
[ 0.111502] audit: type=2000 audit(0.081:1): state=initialized audit_enabled=0 res=1
[ 0.112579] cpuidle: using governor ladder
[ 0.112638] cpuidle: using governor menu
[ 0.113696] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[ 0.113706] hw-breakpoint: maximum watchpoint size is 8 bytes.
[ 0.166469] raid6: using algorithm neonx8 gen() 0 MB/s
[ 0.166482] raid6: …. xor() 0 MB/s, rmw enabled
[ 0.166490] raid6: using neon recovery algorithm
[ 0.170286] SCSI subsystem initialized
[ 0.170662] libata version 3.00 loaded.
[ 0.171083] usbcore: registered new interface driver usbfs
[ 0.171181] usbcore: registered new interface driver hub
[ 0.171314] usbcore: registered new device driver usb
[ 0.171655] mc: Linux media interface: v0.10
[ 0.171712] videodev: Linux video capture interface: v2.00
[ 0.171894] pps_core: LinuxPPS API ver. 1 registered
[ 0.171903] pps_core: Software ver. 5.3.6 – Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.171934] PTP clock support registered
[ 0.175213] clocksource: Switched to clocksource arch_sys_counter
[ 1.807018] VFS: Disk quotas dquot_6.6.0
[ 1.807171] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[ 1.822535] thermal_sys: Registered thermal governor ‘fair_share’
[ 1.822546] thermal_sys: Registered thermal governor ‘bang_bang’
[ 1.822560] thermal_sys: Registered thermal governor ‘step_wise’
[ 1.822566] thermal_sys: Registered thermal governor ‘user_space’
[ 1.822574] thermal_sys: Registered thermal governor ‘power_allocator’
[ 1.823528] NET: Registered protocol family 2
[ 1.824865] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 6144 bytes, linear)
[ 1.824922] TCP established hash table entries: 4096 (order: 2, 16384 bytes, linear)
[ 1.825018] TCP bind hash table entries: 4096 (order: 3, 32768 bytes, linear)
[ 1.825140] TCP: Hash tables configured (established 4096 bind 4096)
[ 1.825401] UDP hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 1.825458] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear)
[ 1.825832] NET: Registered protocol family 1
[ 1.826762] RPC: Registered named UNIX socket transport module.
[ 1.826770] RPC: Registered udp transport module.
[ 1.826777] RPC: Registered tcp transport module.
[ 1.826783] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 1.827242] Trying to unpack rootfs image as initramfs…
[ 2.557732] Freeing initrd memory: 5740K
[ 2.561366] Initialise system trusted keyrings
[ 2.561746] workingset: timestamp_bits=14 max_order=17 bucket_order=3
[ 2.575523] zbud: loaded
[ 2.580288] NFS: Registering the id_resolver key type
[ 2.580347] Key type id_resolver registered
[ 2.580354] Key type id_legacy registered
[ 2.580378] nfs4filelayout_init: NFSv4 File Layout Driver Registering…
[ 2.580387] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
[ 2.583134] JFS: nTxBlock = 3920, nTxLock = 31367
[ 2.591630] SGI XFS with ACLs, security attributes, realtime, no debug enabled
[ 2.691748] Key type asymmetric registered
[ 2.691763] Asymmetric key parser ‘x509’ registered
[ 2.691879] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 247)
[ 2.692266] io scheduler mq-deadline registered
[ 2.692276] io scheduler kyber registered
[ 2.692632] io scheduler bfq registered
[ 2.703261] sun8i-h3-pinctrl 1c20800.pinctrl: initialized sunXi PIO driver
[ 2.706294] sun8i-h3-r-pinctrl 1f02c00.pinctrl: initialized sunXi PIO driver
[ 2.806363] Serial: 8250/16550 driver, 8 ports, IRQ sharing disabled
[ 2.810967] sun8i-h3-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pa not found, using dummy regulator
[ 2.812409] printk: console [ttyS0] disabled
[ 2.832712] 1c28000.serial: ttyS0 at MMIO 0x1c28000 (irq = 42, base_baud = 1500000) is a U6_16550A
[ 2.832808] printk: console [ttyS0] enabled
[ 2.842229] brd: module loaded
[ 2.853502] loop: module loaded
[ 2.856596] libphy: Fixed MDIO Bus: probed
[ 2.857633] dwmac-sun8i 1c30000.ethernet: PTP uses main clock
[ 2.857724] dwmac-sun8i 1c30000.ethernet: 1c30000.ethernet supply phy not found, using dummy regulator
[ 2.857860] dwmac-sun8i 1c30000.ethernet: 1c30000.ethernet supply phy-io not found, using dummy regulator
[ 2.858485] dwmac-sun8i 1c30000.ethernet: Current syscon value is not the default 148000 (expect 58000)
[ 2.858523] dwmac-sun8i 1c30000.ethernet: No HW DMA feature register supported
[ 2.858536] dwmac-sun8i 1c30000.ethernet: RX Checksum Offload Engine supported
[ 2.858548] dwmac-sun8i 1c30000.ethernet: COE Type 2
[ 2.858559] dwmac-sun8i 1c30000.ethernet: TX Checksum insertion supported
[ 2.858571] dwmac-sun8i 1c30000.ethernet: Normal descriptors
[ 2.858582] dwmac-sun8i 1c30000.ethernet: Chain mode enabled
[ 2.858862] libphy: stmmac: probed
[ 2.859892] dwmac-sun8i 1c30000.ethernet: Found internal PHY node
[ 2.860069] libphy: mdio_mux: probed
[ 2.860104] dwmac-sun8i 1c30000.ethernet: Switch mux to internal PHY
[ 2.860122] dwmac-sun8i 1c30000.ethernet: Powering internal PHY
[ 2.869259] libphy: mdio_mux: probed
[ 2.870394] ehci_hcd: USB 2.0 ‘Enhanced’ Host Controller (EHCI) Driver
[ 2.870404] ehci-platform: EHCI generic platform driver
[ 2.870749] ehci-platform 1c1a000.usb: EHCI Host Controller
[ 2.870797] ehci-platform 1c1a000.usb: new USB bus registered, assigned bus number 1
[ 2.871535] ehci-platform 1c1a000.usb: irq 27, io mem 0x01c1a000
[ 2.878261] ehci-platform 1c1a000.usb: USB 2.0 started, EHCI 1.00
[ 2.878751] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.03
[ 2.878767] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.878779] usb usb1: Product: EHCI Host Controller
[ 2.878791] usb usb1: Manufacturer: Linux 5.3.5+ ehci_hcd
[ 2.878802] usb usb1: SerialNumber: 1c1a000.usb
[ 2.879883] hub 1-0:1.0: USB hub found
[ 2.879976] hub 1-0:1.0: 1 port detected
[ 2.881687] ohci_hcd: USB 1.1 ‘Open’ Host Controller (OHCI) Driver
[ 2.881731] ohci-platform: OHCI generic platform driver
[ 2.882025] ohci-platform 1c1a400.usb: Generic Platform OHCI controller
[ 2.882065] ohci-platform 1c1a400.usb: new USB bus registered, assigned bus number 2
[ 2.882480] ohci-platform 1c1a400.usb: irq 28, io mem 0x01c1a400
[ 2.938678] usb usb2: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.03
[ 2.938693] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.938706] usb usb2: Product: Generic Platform OHCI controller
[ 2.938717] usb usb2: Manufacturer: Linux 5.3.5+ ohci_hcd
[ 2.938728] usb usb2: SerialNumber: 1c1a400.usb
[ 2.939725] hub 2-0:1.0: USB hub found
[ 2.939829] hub 2-0:1.0: 1 port detected
[ 2.941630] usbcore: registered new interface driver usb-storage
[ 2.942777] mousedev: PS/2 mouse device common for all mice
[ 2.944278] sun6i-rtc 1f00000.rtc: registered as rtc0
[ 2.944290] sun6i-rtc 1f00000.rtc: RTC enabled
[ 2.944755] i2c /dev entries driver
[ 2.949911] sunxi-wdt 1c20ca0.watchdog: Watchdog enabled (timeout=16 sec, nowayout=0)
[ 2.951682] sun8i-h3-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pf not found, using dummy regulator
[ 2.953003] sunxi-mmc 1c0f000.mmc: Got CD GPIO
[ 2.978602] sunxi-mmc 1c0f000.mmc: initialized, max. request size: 16384 KB
[ 2.979015] sun8i-h3-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pg not found, using dummy regulator
[ 2.980461] sun8i-h3-r-pinctrl 1f02c00.pinctrl: 1f02c00.pinctrl supply vcc-pl not found, using dummy regulator
[ 2.981668] ledtrig-cpu: registered to indicate activity on CPUs
[ 2.981967] hidraw: raw HID events driver (C) Jiri Kosina
[ 2.982175] usbcore: registered new interface driver usbhid
[ 2.982231] usbhid: USB HID core driver
[ 2.984861] NET: Registered protocol family 10
[ 3.030547] mmc0: host does not support reading read-only switch, assuming write-enable
[ 3.032551] mmc0: new high speed SDHC card at address 1388
[ 3.033397] Segment Routing with IPv6
[ 3.033668] NET: Registered protocol family 17
[ 3.035077] Key type dns_resolver registered
[ 3.035154] mmcblk0: mmc0:1388 USD00 7.32 GiB
[ 3.036148] Registering SWP/SWPB emulation handler
[ 3.037269] registered taskstats version 1
[ 3.037278] Loading compiled-in X.509 certificates
[ 3.037481] zswap: loaded using pool lzo/zbud
[ 3.038004] mmcblk0: p1 p2
[ 3.041092] Btrfs loaded, crc32c=crc32c-generic
[ 3.064524] Key type encrypted registered
[ 3.083173] sun8i-h3-pinctrl 1c20800.pinctrl: 1c20800.pinctrl supply vcc-pg not found, using dummy regulator
[ 3.085574] ehci-platform 1c1b000.usb: EHCI Host Controller
[ 3.085625] ehci-platform 1c1b000.usb: new USB bus registered, assigned bus number 3
[ 3.086228] ehci-platform 1c1b000.usb: irq 29, io mem 0x01c1b000
[ 3.093258] ehci-platform 1c1b000.usb: USB 2.0 started, EHCI 1.00
[ 3.093656] usb usb3: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.03
[ 3.093671] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.093683] usb usb3: Product: EHCI Host Controller
[ 3.093695] usb usb3: Manufacturer: Linux 5.3.5+ ehci_hcd
[ 3.093706] usb usb3: SerialNumber: 1c1b000.usb
[ 3.094764] hub 3-0:1.0: USB hub found
[ 3.094836] hub 3-0:1.0: 1 port detected
[ 3.096321] ehci-platform 1c1c000.usb: EHCI Host Controller
[ 3.096378] ehci-platform 1c1c000.usb: new USB bus registered, assigned bus number 4
[ 3.096753] ehci-platform 1c1c000.usb: irq 31, io mem 0x01c1c000
[ 3.103257] ehci-platform 1c1c000.usb: USB 2.0 started, EHCI 1.00
[ 3.103613] usb usb4: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.03
[ 3.103628] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.103640] usb usb4: Product: EHCI Host Controller
[ 3.103651] usb usb4: Manufacturer: Linux 5.3.5+ ehci_hcd
[ 3.103662] usb usb4: SerialNumber: 1c1c000.usb
[ 3.104569] hub 4-0:1.0: USB hub found
[ 3.104633] hub 4-0:1.0: 1 port detected
[ 3.106019] ehci-platform 1c1d000.usb: EHCI Host Controller
[ 3.106059] ehci-platform 1c1d000.usb: new USB bus registered, assigned bus number 5
[ 3.106474] ehci-platform 1c1d000.usb: irq 33, io mem 0x01c1d000
[ 3.113253] ehci-platform 1c1d000.usb: USB 2.0 started, EHCI 1.00
[ 3.113590] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 5.03
[ 3.113604] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.113616] usb usb5: Product: EHCI Host Controller
[ 3.113628] usb usb5: Manufacturer: Linux 5.3.5+ ehci_hcd
[ 3.113639] usb usb5: SerialNumber: 1c1d000.usb
[ 3.114559] hub 5-0:1.0: USB hub found
[ 3.114624] hub 5-0:1.0: 1 port detected
[ 3.115991] ohci-platform 1c1b400.usb: Generic Platform OHCI controller
[ 3.116030] ohci-platform 1c1b400.usb: new USB bus registered, assigned bus number 6
[ 3.116416] ohci-platform 1c1b400.usb: irq 30, io mem 0x01c1b400
[ 3.172584] usb usb6: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.03
[ 3.172599] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.172611] usb usb6: Product: Generic Platform OHCI controller
[ 3.172622] usb usb6: Manufacturer: Linux 5.3.5+ ohci_hcd
[ 3.172633] usb usb6: SerialNumber: 1c1b400.usb
[ 3.173533] hub 6-0:1.0: USB hub found
[ 3.173600] hub 6-0:1.0: 1 port detected
[ 3.174941] ohci-platform 1c1c400.usb: Generic Platform OHCI controller
[ 3.174979] ohci-platform 1c1c400.usb: new USB bus registered, assigned bus number 7
[ 3.175375] ohci-platform 1c1c400.usb: irq 32, io mem 0x01c1c400
[ 3.231553] usb usb7: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.03
[ 3.231568] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.231580] usb usb7: Product: Generic Platform OHCI controller
[ 3.231592] usb usb7: Manufacturer: Linux 5.3.5+ ohci_hcd
[ 3.231603] usb usb7: SerialNumber: 1c1c400.usb
[ 3.232489] hub 7-0:1.0: USB hub found
[ 3.232553] hub 7-0:1.0: 1 port detected
[ 3.233903] ohci-platform 1c1d400.usb: Generic Platform OHCI controller
[ 3.233944] ohci-platform 1c1d400.usb: new USB bus registered, assigned bus number 8
[ 3.234311] ohci-platform 1c1d400.usb: irq 34, io mem 0x01c1d400
[ 3.290556] usb usb8: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 5.03
[ 3.290571] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.290583] usb usb8: Product: Generic Platform OHCI controller
[ 3.290595] usb usb8: Manufacturer: Linux 5.3.5+ ohci_hcd
[ 3.290606] usb usb8: SerialNumber: 1c1d400.usb
[ 3.291521] hub 8-0:1.0: USB hub found
[ 3.291590] hub 8-0:1.0: 1 port detected
[ 3.293038] usb_phy_generic usb_phy_generic.0.auto: usb_phy_generic.0.auto supply vcc not found, using dummy regulator
[ 3.295900] core: _opp_supported_by_regulators: OPP minuV: 1320000 maxuV: 1320000, not supported by regulator
[ 3.295919] cpu cpu0: _opp_add: OPP not supported by regulators (1104000000)
[ 3.296104] core: _opp_supported_by_regulators: OPP minuV: 1320000 maxuV: 1320000, not supported by regulator
[ 3.296119] cpu cpu0: _opp_add: OPP not supported by regulators (1200000000)
[ 3.296341] core: _opp_supported_by_regulators: OPP minuV: 1340000 maxuV: 1340000, not supported by regulator
[ 3.296355] cpu cpu0: _opp_add: OPP not supported by regulators (1296000000)
[ 3.296502] core: _opp_supported_by_regulators: OPP minuV: 1400000 maxuV: 1400000, not supported by regulator
[ 3.296515] cpu cpu0: _opp_add: OPP not supported by regulators (1368000000)
[ 3.313963] Freeing unused kernel memory: 1024K
[ 3.325566] Run /init as init process
[ 3.432126] random: systemd-udevd: uninitialized urandom read (16 bytes read)
[ 3.432775] random: systemd-udevd: uninitialized urandom read (16 bytes read)
[ 3.438030] random: udevadm: uninitialized urandom read (16 bytes read)
[ 4.511219] random: fast init done
[ 4.545842] EXT4-fs (mmcblk0p2): mounted filesystem with ordered data mode. Opts: (null)
[ 5.034295] systemd[1]: System time before build time, advancing clock.
[ 5.158486] systemd[1]: systemd 229 running in system mode. (+PAM +AUDIT +SELINUX +IMA +APPARMOR +SMACK +SYSVINIT +UTMP +LIBCRYPTSETUP +GCRYPT +GNUTLS +ACL +XZ -LZ4 +SECCOMP +BLKID +ELFUTILS +KMOD -IDN)
[ 5.159082] systemd[1]: Detected architecture arm.
[ 5.173619] systemd[1]: Set hostname to <firmserver>.
[ 5.753104] systemd[1]: Listening on /dev/initctl Compatibility Named Pipe.
[ 5.764763] systemd[1]: Reached target Swap.
[ 5.769562] systemd[1]: Listening on udev Control Socket.
[ 5.780017] systemd[1]: Reached target Remote File Systems (Pre).
[ 5.791355] systemd[1]: Set up automount Arbitrary Executable File Formats File System Automount Point.
[ 5.803798] systemd[1]: Started Dispatch Password Requests to Console Directory Watch.
[ 5.813686] systemd[1]: Listening on fsck to fsckd communication Socket.
[ 6.036172] EXT4-fs (mmcblk0p2): re-mounted. Opts: (null)
[ 6.388118] systemd-journald[297]: Received request to flush runtime journal from PID 1
[ 6.888924] sunxi_cedrus: module is from the staging directory, the quality is unknown, you have been warned.
[ 6.917334] cedrus 1c0e000.video-codec: Device registered as /dev/video0
[ 7.073449] lima 1c40000.gpu: gp – mali400 version major 1 minor 1
[ 7.073560] lima 1c40000.gpu: pp0 – mali400 version major 1 minor 1
[ 7.073618] lima 1c40000.gpu: pp1 – mali400 version major 1 minor 1
[ 7.073662] lima 1c40000.gpu: l2 cache 64K, 4-way, 64byte cache line, 64bit external bus
[ 7.081992] thermal thermal_zone0: failed to read out thermal zone (-110)
[ 7.094688] lima 1c40000.gpu: bus rate = 200000000
[ 7.094704] lima 1c40000.gpu: mod rate = 384000000
[ 7.095283] [drm] Initialized lima 1.0.0 20190217 for 1c40000.gpu on minor 0
[ 7.116500] sun4i-codec 1c22c00.codec: ASoC: codec-analog@1f015c0 not registered
[ 7.124003] sun4i-codec 1c22c00.codec: Failed to register our card
[ 7.134119] alloc_contig_range: [57c52, 57c53) PFNs busy
[ 7.136793] sun4i-codec 1c22c00.codec: ASoC: codec-analog@1f015c0 not registered
[ 7.144350] sun4i-codec 1c22c00.codec: Failed to register our card
[ 7.177549] debugfs: Directory ‘1c22c00.codec’ with parent ‘H3 Audio Codec’ already present!
[ 7.186274] sun4i-codec 1c22c00.codec: ASoC: Failed to create component debugfs directory: -17
[ 7.229132] sun4i-codec 1c22c00.codec: Codec <-> 1c22c00.codec mapping ok
[ 7.254071] sunxi-mmc 1c10000.mmc: allocated mmc-pwrseq
[ 7.482264] sunxi-mmc 1c10000.mmc: initialized, max. request size: 16384 KB
[ 7.499683] mmc1: new high speed SDIO card at address 0001
[ 7.916698] dwmac-sun8i 1c30000.ethernet eth0: PHY [0.1:01] driver [Generic PHY]
[ 7.916736] dwmac-sun8i 1c30000.ethernet eth0: phy: setting supported 00,00000000,000062cf advertising 00,00000000,000062cf
[ 7.923318] dwmac-sun8i 1c30000.ethernet eth0: No Safety Features support found
[ 7.923347] dwmac-sun8i 1c30000.ethernet eth0: No MAC Management Counters available
[ 7.923359] dwmac-sun8i 1c30000.ethernet eth0: PTP not supported by HW
[ 7.923372] dwmac-sun8i 1c30000.ethernet eth0: configuring for phy/mii link mode
[ 7.923400] dwmac-sun8i 1c30000.ethernet eth0: phylink_mac_config: mode=phy/mii/Unknown/Unknown adv=00,00000000,000062cf pause=10 link=0 an=1
[ 7.927253] dwmac-sun8i 1c30000.ethernet eth0: phy link up mii/100Mbps/Full
[ 7.927294] dwmac-sun8i 1c30000.ethernet eth0: phylink_mac_config: mode=phy/mii/100Mbps/Full adv=00,00000000,00000000 pause=0e link=1 an=0
[ 7.927318] dwmac-sun8i 1c30000.ethernet eth0: Link is Up – 100Mbps/Full – flow control rx/tx
[ 7.927345] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 9.651073] zram: Added device: zram0
[ 9.720103] zram: Added device: zram1
[ 9.726720] zram: Added device: zram2
[ 9.731967] zram: Added device: zram3
[ 9.858423] zram0: detected capacity change from 0 to 64372736
[ 9.959330] Adding 62860k swap on /dev/zram0. Priority:5 extents:1 across:62860k SSFS
[ 9.962144] zram1: detected capacity change from 0 to 64372736
[ 9.994300] Adding 62860k swap on /dev/zram1. Priority:5 extents:1 across:62860k SSFS
[ 9.996723] zram2: detected capacity change from 0 to 64372736
[ 10.057312] Adding 62860k swap on /dev/zram2. Priority:5 extents:1 across:62860k SSFS
[ 10.060824] zram3: detected capacity change from 0 to 64372736
[ 10.102345] Adding 62860k swap on /dev/zram3. Priority:5 extents:1 across:62860k SSFS
[ 33.790282] vcc3v0: disabling
[ 33.790303] vcc5v0: disabling
[ 92.716002] random: crng init done
[ 92.716025] random: 7 urandom warning(s) missed due to ratelimiting
[53904.635856] usb 3-1: new high-speed USB device number 2 using ehci-platform
[53904.764837] usb 3-1: New USB device found, idVendor=abcd, idProduct=1234, bcdDevice= 1.00
[53904.764856] usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[53904.764868] usb 3-1: Product: UDisk
[53904.764880] usb 3-1: Manufacturer: General
[53904.764891] usb 3-1: SerialNumber: \xffffffd0\xffffff89
[53904.766203] usb-storage 3-1:1.0: USB Mass Storage device detected
[53904.772649] scsi host0: usb-storage 3-1:1.0
[53904.836495] usbcore: registered new interface driver uas
[53905.827263] scsi 0:0:0:0: Direct-Access General UDisk 5.00 PQ: 0 ANSI: 2
[53905.828582] sd 0:0:0:0: Attached scsi generic sg0 type 0
[53905.833044] sd 0:0:0:0: [sda] 3891200 512-byte logical blocks: (1.99 GB/1.86 GiB)
[53905.833984] sd 0:0:0:0: [sda] Write Protect is off
[53905.834005] sd 0:0:0:0: [sda] Mode Sense: 0b 00 00 08
[53905.834995] sd 0:0:0:0: [sda] No Caching mode page found
[53905.840429] sd 0:0:0:0: [sda] Assuming drive cache: write through
[53905.853946] sda: sda1
[53905.860316] sd 0:0:0:0: [sda] Attached SCSI removable disk
[53906.555365] FAT-fs (sda1): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
shutting down now
